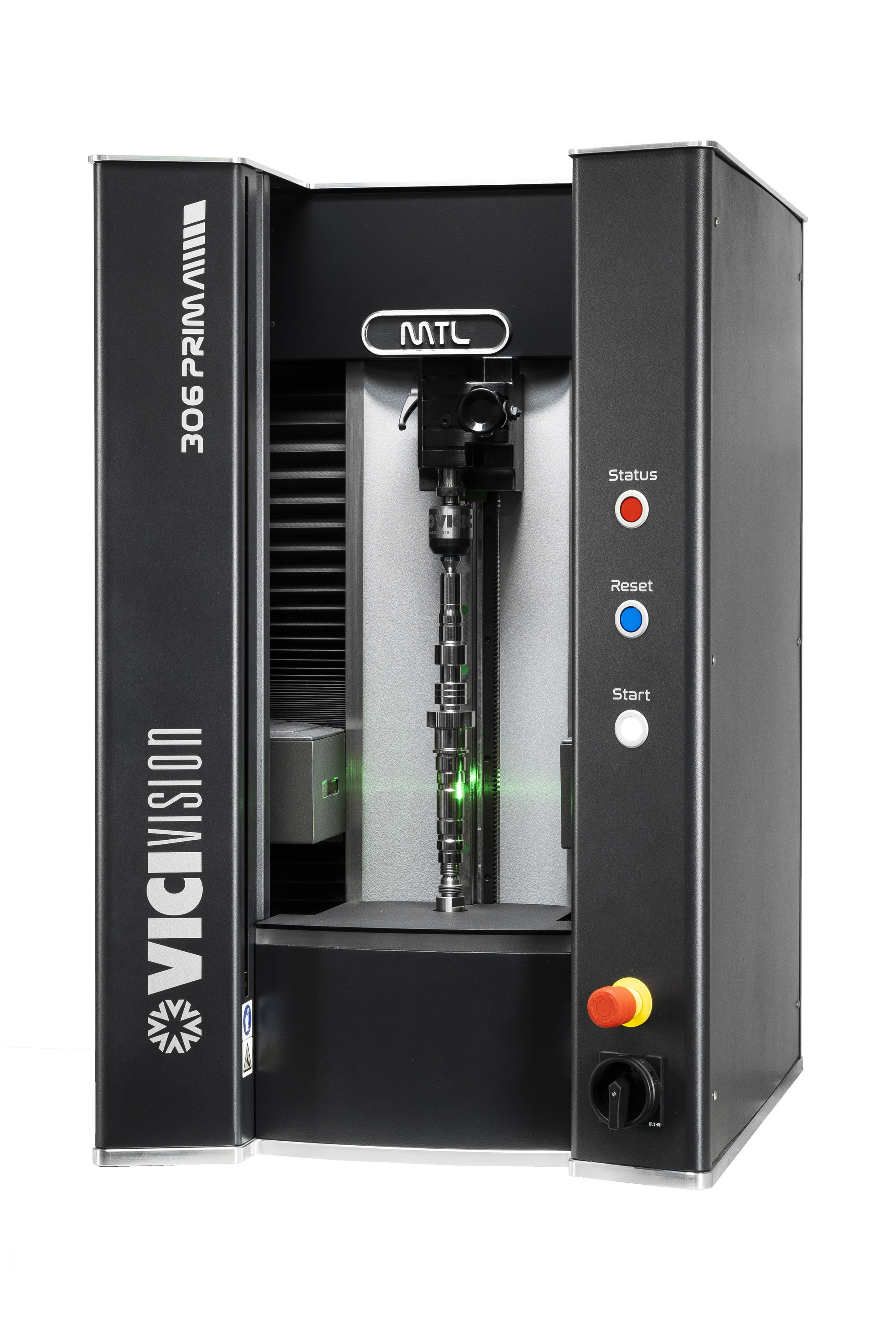

The optical measuring machine for all CNC lathes.

Simplicity allows each operator to control the production process at any time.

The aim is to provide high measurement standards in a new competitive and compact machine.

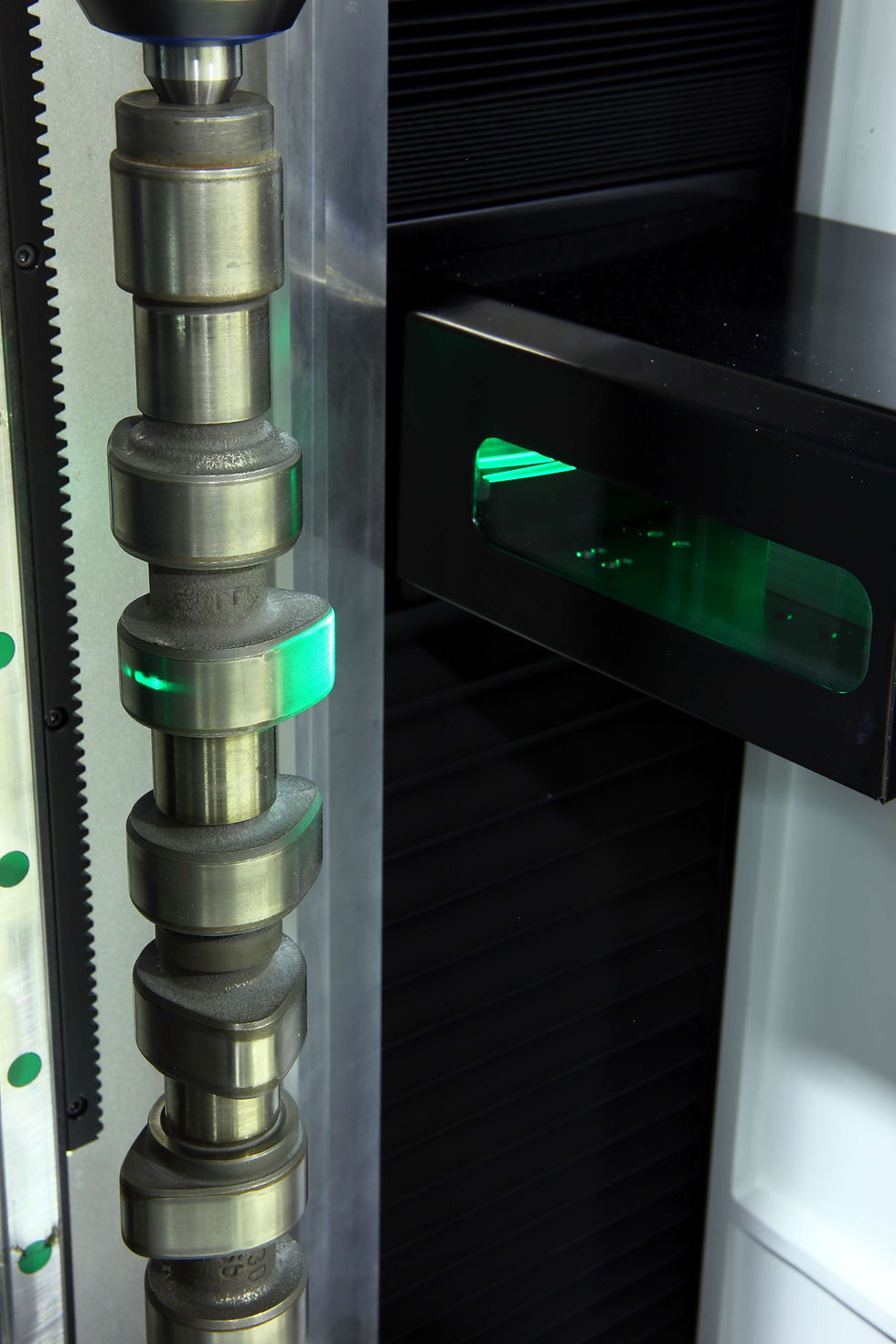

Detect hundreds of measurements in seconds on all turned and ground parts.

The measuring fields of this new series are from 60 to 140 mm of diameter and from 300 to 600 mm of length.

DETECTABLE MEASURES

Static Measures:

• Diameter

• Length

• Angle

• Radius

• Chamfer

Dynamic Measures:

• Coaxiality

• Runout

• Circularity

• Cylindricity

• Taper

Threads:

• Nominal Diameter

• Pitch Diameter

• Core Diameter

• Crests Angle

• Pitch

• Roll Dimension

Nut Measurements:

• Diameter

• Asymmetry

• Timing

Profile Measurements:

• DXF Comparison

• DXF Export
