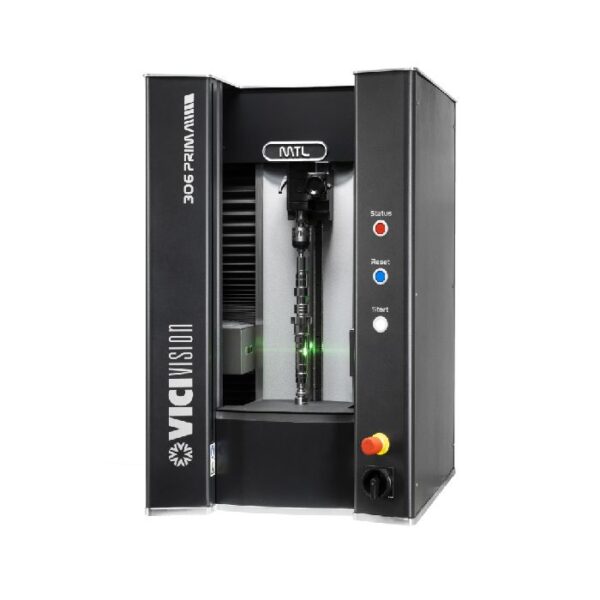

Prima Series
The optical measuring machine for all CNC lathes.
Simplicity allows each operator to control the production process at any time.
The aim is to provide high measurement standards in a new competitive and compact machine.

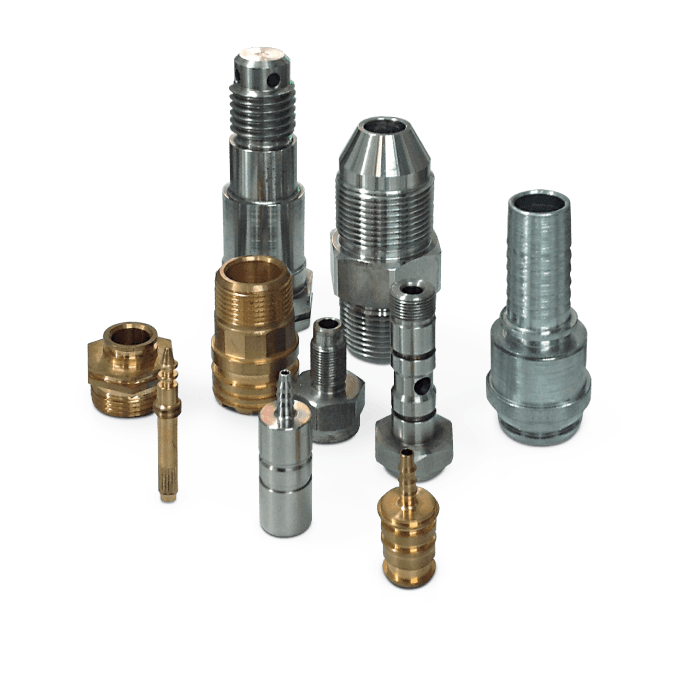

Detect hundreds of measurements in seconds on all turned and ground parts.
The measuring fields of this new series are from 60 to 140 mm of diameter, from 300 to 600 mm of length.
Detectable Measures
Static measures:
– diameter
– length
– angle
– radius
– chamfer
Dynamic measures:
– coaxiality
– runout
– circularity
– cylindricity
– taper
Threads:
– nominal diameter
– pitch diameter
– core diameter
– crests angle
– pitch
– roll dimension
Nut:
– diameter
– asymmetry
– timing
Profile measurements:
– DXF comparison
– DXF export
